BATTERY POWERED CRIMPING TOOL
EB-300
To be standard constitutor in hydraulic tool field,ZUPPER develop the technology of brushless motor,no carbon brush,maintenance-free,motor overload protection and 30% Longer motor life,the brushless motor will do more work in the same full charge of the battery pack,30% more run-time than the brush motor.
| Rated pressure: | 60kN |
| Stroke: | 17mm |
| Oil capacity: | 115ml |
| Max crimping: | Cu 300mm²/Al 240mm² |
| Cycle time | 2.5~3.5s (CU 150 mm²) |
| Cycles/charger: | Approx.300 cycles (CU 150 mm²) |
| Voltage/capacity: | 18V/4.0Ah |
| Charging time: | Approx.80 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Weight incl. battery: | 4.6kgs |
| ACCESSORIES | |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
BLUETOOTH AND PRESSURE SENSOR
Thanks to new implemented Bluetooth technology, device-
related data can be requested via the ZUPPER APP.The ZUPPER
EB Series include BLUETOOTH as basic configuration,you can
choose pressure sensor at optional.
ZUPPER Check-APP
● Data transfer between crimp tool and APP
● See the location of where your ZUPPER Link enabled tool was last seen.
● Check the pressure by pressure sensor to differentiate the pressure normal or not.
● APP shows the pressure data counter to check and analyze the pressure easily.
Related Products
COUPLER
C-18S
REBAR CUTTER
CPC-16A
MANUAL CRIMPING TOOL
JY-0650A

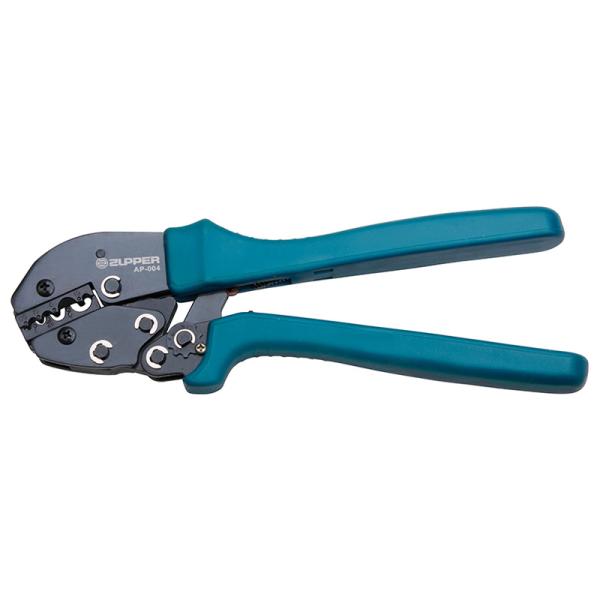

HAND CRIMPING TOOL
