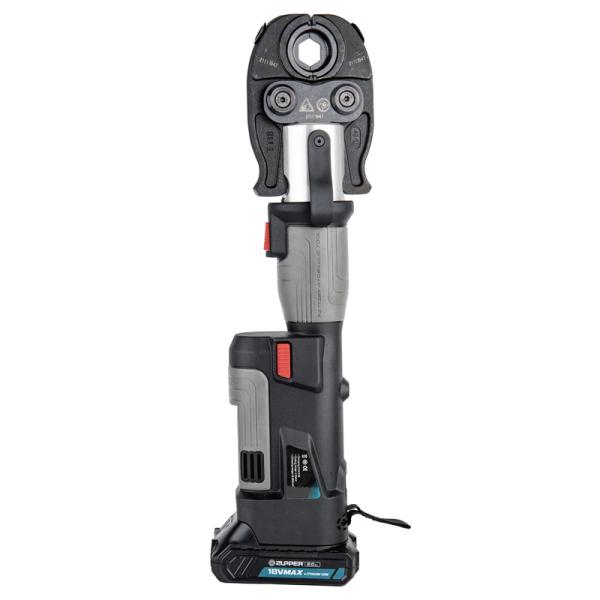

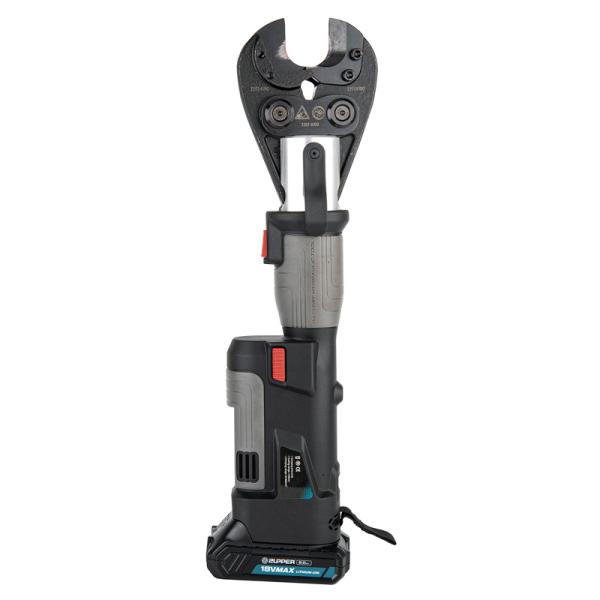

BATTERY POWERED CRIMPING & CUTTING TOOL
PZ-300C
For operations requiring varied application, the ZUPPER offers a multi-functional tool, crimping and cutting in one single tool.The ZUPPER PZ-300C with the small size and a low weight can generate high power and performance,it is the newest addition to the mini crimp & cut tool with in-line grip, 2kgs Only, 2.5-5 Seconds work cycle time.
THE RIGHTTOOL FOR YOUR NEEDS

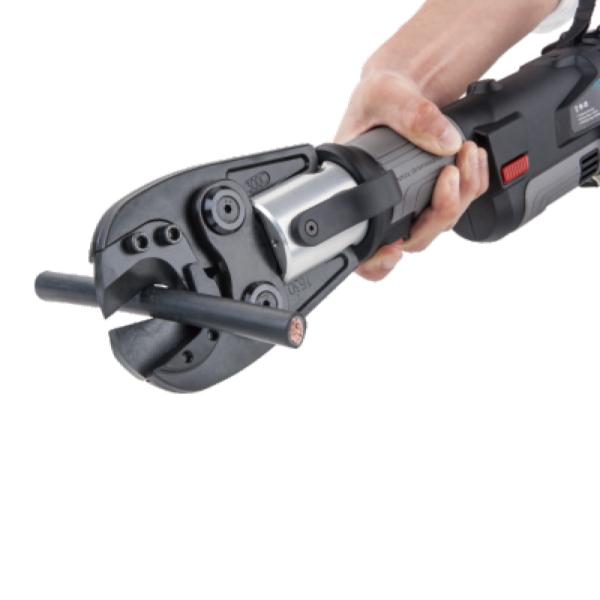

Cutting range: Φ30mm Cu/Al cable

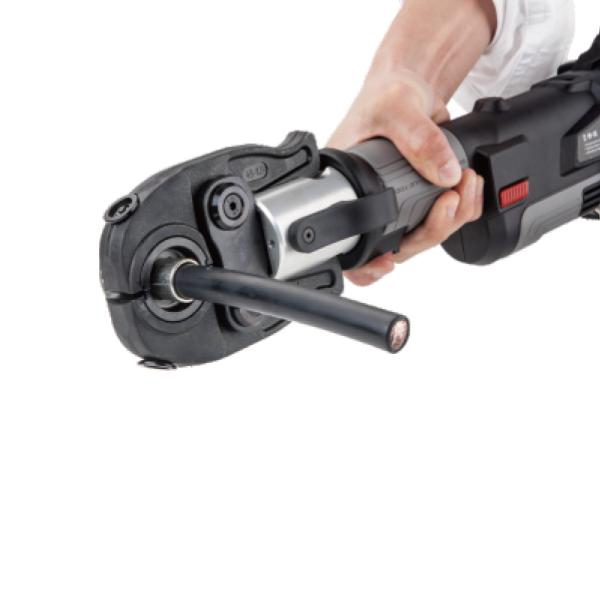

Crimping range: Cu 300mm² /Al 240mm²
| Rated pressure: | 19kN |
| Stroke: | 30mm |
| Cutting range: | φ30mm Cu/Al cable (It is not suitable for cutting fine strand and extra fine cables) |
| Max crimping range: | SC series Cu300mm² |
| DT/DTM series Cu120mm² | |
| Voltage/capacity: | 18V/2.0Ah |
| Charging time: | Approx.40 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Weight: | 2kgs(with battery) |
| 3.4kgs(with battery and head) | |
| Size of tool: | 363x119x75mm |

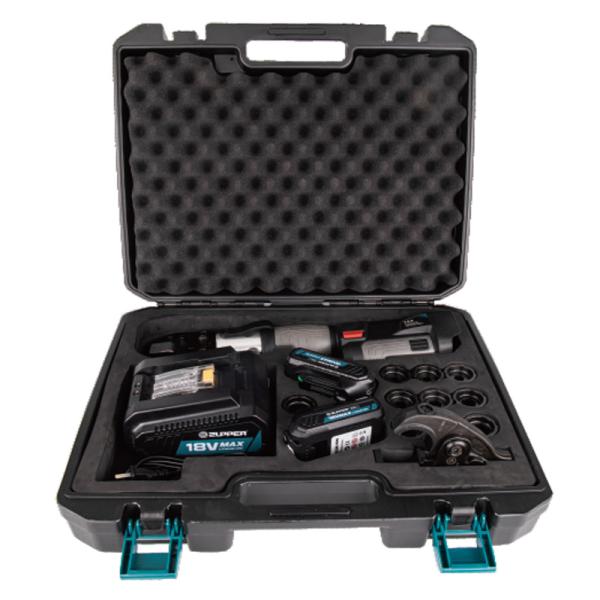

| ACCESSORIES | |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300mm² |
| Crimping head: | 1pc |
| Cutting head: | 1pc |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
Related Products
MANUAL AXIAL PRESS TOOL
FT-1240
HAND CRIMPING TOOL
T-007A
BATTERY POWERED MULTI-FUNCTIONALTOOL
ED-60UNV

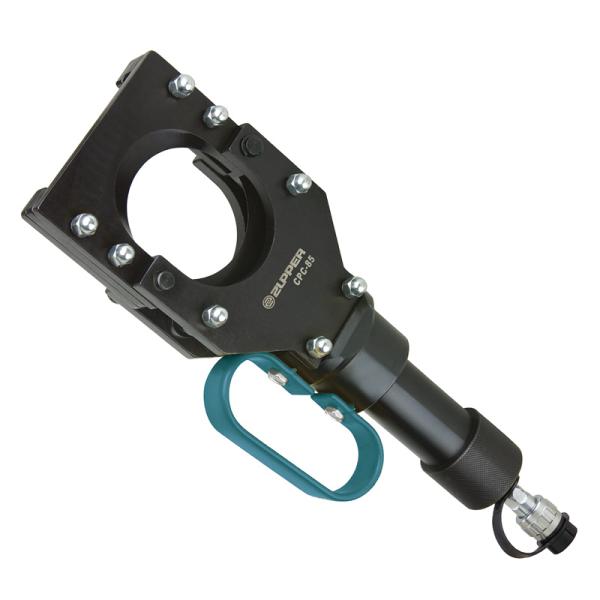

HAND-OPERATED HYDRAULIC CABLE CUTTING TOOL
