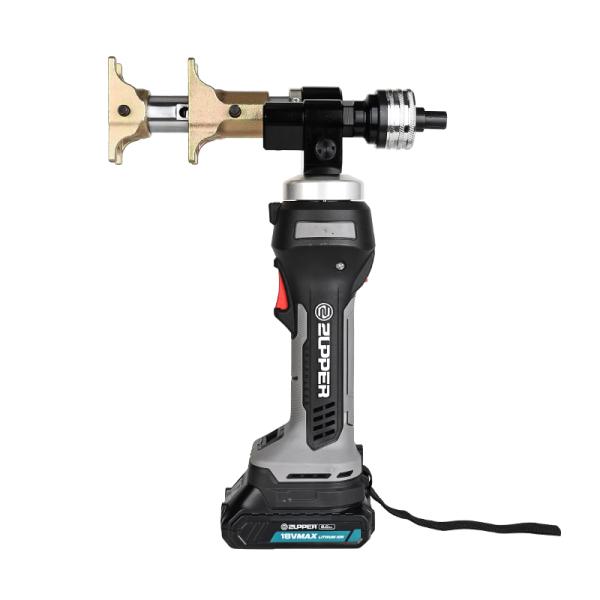

BATTERY POWERED AXIAL PRESS&EXPAND TOOL
BLM-1240PE
For axial press & expand Pex and Multi-layer composite pipe
| Output: | 18kN |
| Stroke: | 39mm |
| Expanding/Connecting range: | φ16-32mm |
| Service interval: | 10000cycles |
| Voltage of battery: | DC 18V,2.0Ah |
| Connecting cycle time | Approx. 2.5-5S |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Charging time: | Approx.40mins |
| Weight: | 3.7kgs |
| Tool size: | 373x252x97mm |
| Accessories: | |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve: | 1set |
| Connecting jaws: | φ16-20mm、φ25-32mm |
| Expanding dies: | Pex pipe :φ16x2.2、φ20x2.8、φ25x3.5、φ32x4.4 |
| PAP pipe[optional]:φ16.2x2.6、φ20x2.9、φ25x3.7、φ32x4.7 | |
