Bandage Gauze Pad Gauze Swab Folding Machine

Bandage gauze pad gauze swab folding machine is used to automatic folding of cotton gauze,bandage gauze,gauze swab etc.
It replaces the traditional manual folding, greatly improves the production efficiency,and forms neatly and beautifully.

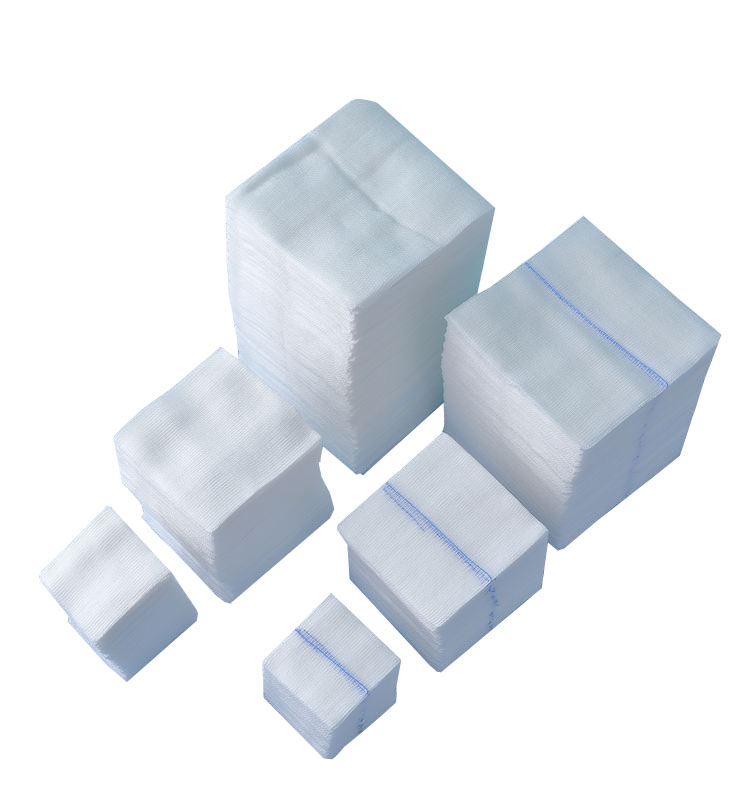

To fold gauze pad 5x5cm, 7.5x7.5cm, 10x10cm, 8ply, 12ply, 16ply etc.
The machine can fold gauze pad with folded edge and unfold edge.


Features:
1.Touch screen control system, frequency control speed,simple in operation.
2.With electric-eye, machine will stop automatically while run out of gauze fabric, fabric joints, or bad swab.
3.Automatic spray water device, gauze swabs come out with good folding effect.
4.Automatic quantity counting system.
5.With tension control system, easy to control tension of gauze roll material.

Main Data:

Name:Bandage Gauze Pad Gauze Swab Folding Machine

Model:PPD-BGFM180

Jumbo roll outer diameter:max1000mm

Product size:50*50mm/75*75mm option

Available layer:8,12,16 option

Speed:125-200pcs/min

Voltage:380V,50hz

Power:6kw

Air supply:0.6Mpa
