Automatic CNC Plate Edge Milling Machine
CJ-V/X3000 Beveler Machine
CNC 3000 plate edge milling machine employs a high-speed milling working principle to machine grooves into workpieces prior to welding. It is classified into several categories, including automatic walking steel sheet milling machines, large-scale milling machines, and CNC steel sheet milling machines. Other option 2000mm to 10000mm available.
Features:
Bevel Joint
Achieved Bevel Joint: V/Y、L、J/U、I ( K/X on X3000)
Drive Parts
1.Full servo drive + precision planetary deceleration to ensure
precision and efficiency of each shaft;
2.Heavy linear guide, ball screw and precision rack and pinion
applications;
Screen
HMI Touch Screen,Intuitive interface,System Setting and records,Optional Langueage Input,
Easy Operation and Safety,Remote System Upgrade
| Situation | VS3000 | V3000 | XS3000 | X3000 |
| Max Machine Stroke Length | 3000mm | 3000mm | 3000mm | 3000mm |
| Bevel Thickness | 8-80mm | 8-80mm | 8-80mm | 8-80mm |
| Bevel Angel | Upper Bevel：0-85 | Upper Bevel：0-85 | Upper Bevel：0-85，Down Bevel：0-60 | Upper Bevel：0-85，Down Bevel：0-60 |
| Processing Speed | 800-1500mm/min | 800-1500mm/min | 800-1500mm/min | 800-1500mm/min |
| Head Spindle | 5.5kw X 1 | 5.5kw X 1 | 5.5kw X 2 | 5.5kw X 2 |
| Pressure Foot QTY | 14 | 14 | 14 | 14 |
| Pressure Foot Move Back and Forth | Manual | Automatic | Manual | Automatic |
| Table Move Back and Forth | NO | NO | Manual | Automatic |
| Safety Guard | NO | Protecting Cover+Safety Guard | NO | Protecting Cover+Safety Guard |
| Chip Removal Device | NO | Spiral chip removal + lifting system | NO | Spiral chip removal + lifting system |
| Hydraulic Unit | 7Mpa | 7Mpa | 7Mpa | 7Mpa |
| Total Power | about 15kw | about 18kw | about 23kw | about 26kw |
| Weight | about 6.5T | about 7.5T | about 9.5T | about10.5T |
| Machine Size(LxWxH） | 6000x2100x2750（mm) | 6200x2300x2750（mm) | 7000x2100x2750（mm) | 7300x2300x2750（mm) |
Related Products
CNC Sheet Metal Laser Cutting Machine
CJ-6000 Metal Laser Cutter

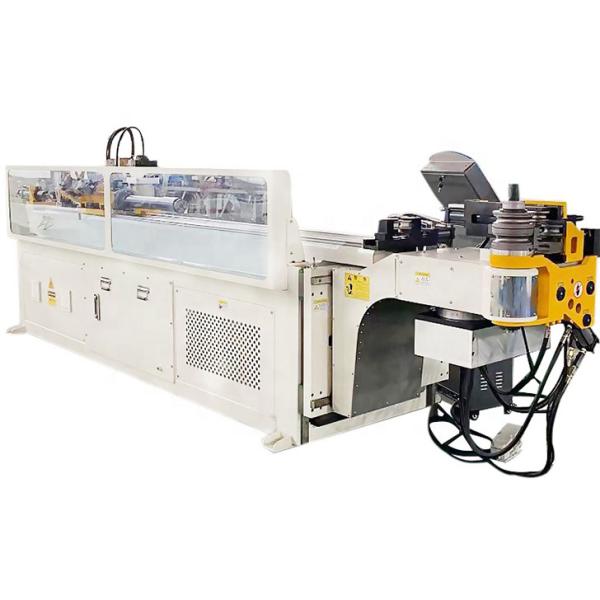

CNC Left and Right Tube Bending Machine
